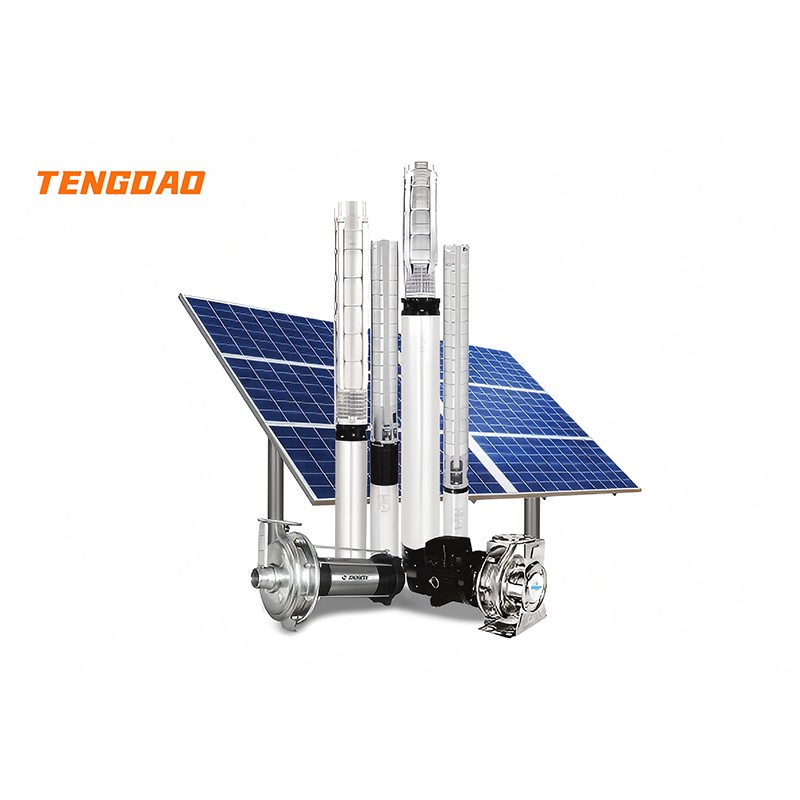

Tengdao Photovoltaic deep well pump

Product Overview

The high-speed, efficient, energy-saving water-filled electric motor solar pump is a new product independently developed by our company. This product features a water-filled, shielded, brushless permanent magnet motor drive and is equipped with an intelligent controller. It can operate at high speed by converting between AC and DC, breaking through many bottlenecks of traditional deep well pumps. The motor has a built-in electronic device that includes a frequency converter and motor controller.

The shielded design eliminates the need for mechanical seals, avoiding the risk of leakage caused by wear on mechanical seals, and prevents efficiency loss due to friction from mechanical seals. It also ensures good cooling for the rotor.

The pump uses water-lubricated bearings and water-thrust lubricated bearings as support points, allowing the pump to operate quietly under load. The stainless steel shielded rotor protects against corrosion and oxidation of the magnetic steel, while the stainless steel shielded core effectively dissipates heat. The entire structure is made from precision-cast stainless steel 304, and the pump cylinder is welded from stainless steel 304. Major components are welded using advanced laser welding equipment.

This product is widely used in villages, schools, hospitals, farms, ranches, remote areas, regions with limited electricity, construction sites, small water plants, household water supply, water tank applications, irrigation, and more.

Main Parameters

◆ Power: 550W – 2200W;

◆ Wide voltage input: DC 60-380V (operating voltage) AC 90-240V/50Hz, 60Hz;

◆ Maximum open-circuit voltage for solar panels must not exceed 450V;

◆ All solar panels are connected in series;

◆ Current range: 1.5-14A;

◆ Speed range: 500-4500 rpm;

◆ Insulation class: F Protection class: IP68;

◆ Liquid: This product is suitable for non-viscous, clean, non-corrosive, non-explosive liquids without solid or large fiber particles;

◆ pH value: 5~9;

◆ Liquid temperature: 0°C~+40°C;

◆ Maximum sand content: 50g/m³.

Main Features

◆ Brushless permanent magnet dual-shielded motor with frequency converter and FOC motor controller

◆ Soft start operation extends system lifespan

◆ Powered by AC/DC, voltage range: 60-380VDC or 90-240V AC, 50/60Hz

◆ MPPT function achieves solar tracking with maximum power above 99%

◆ PFC function ensures AC power factor exceeds 0.99

◆ Very easy to install

◆ High efficiency with FOC, high motor efficiency

◆ No-load protection, overload protection, over-temperature protection, over-current protection, over-voltage protection, phase loss protection, and stall protection.

Model	Voltage	Power		Flow	Maximum head	Caliber	Outer diameter
Model	V	kW	HP	(m³/h)	(m)	(mm)	(mm)

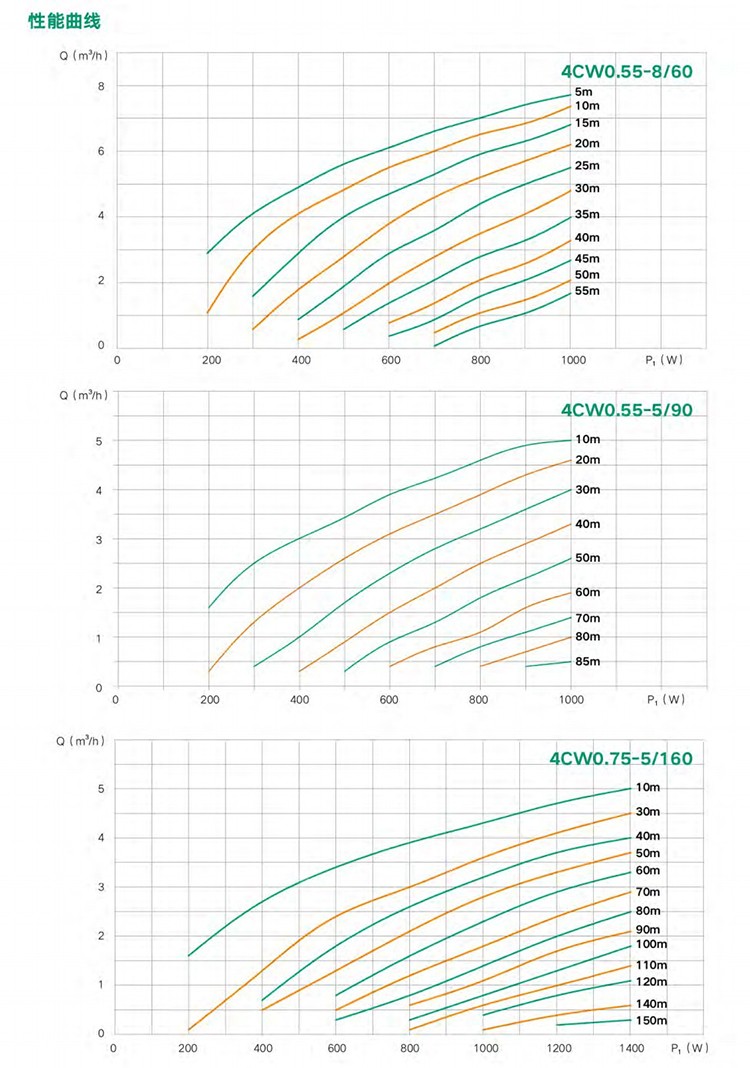

4CW0.55-5/90	DC:60~380V AC:90~240V/50Hz,60Hz	0.55	0.75	5	90	32	100
4CW0.55-8/60		0.55	0.75	8	60	38	100

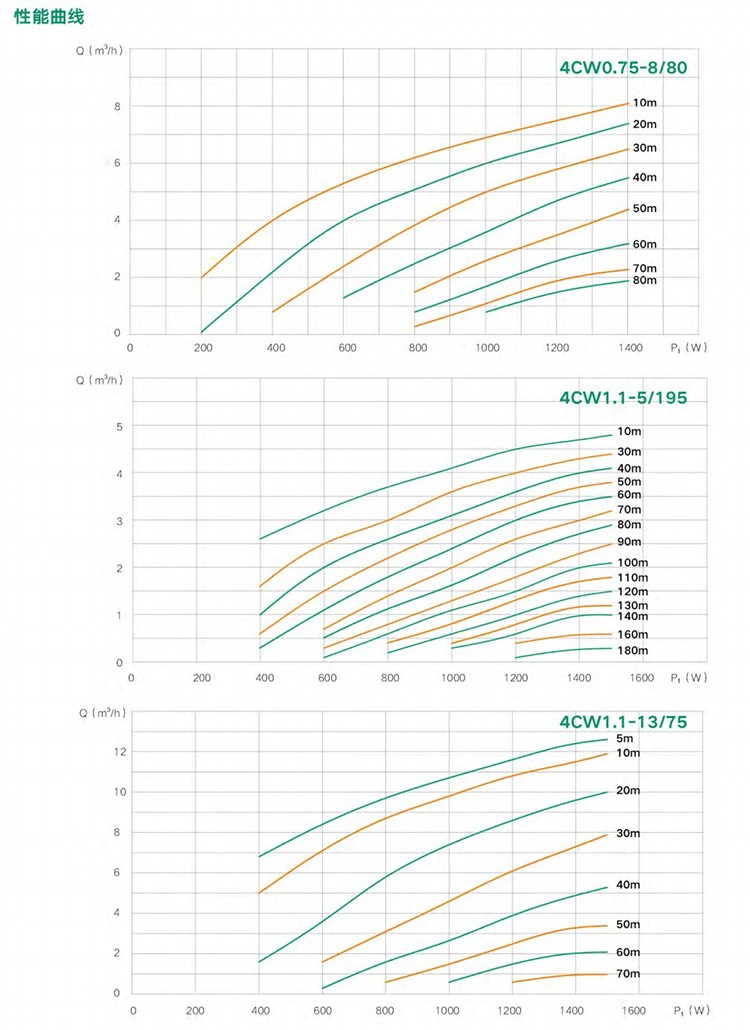

4CW0.75-8/80		0.75	1.0	8	80	38	100
4CW0.75-5/160		0.75	1.0	4.8	158	32	100
4CW1.1-5/195		1.1	1.5	4.8	193	32	100
4CW1.1-13/75		1.1	1.5	12.8	75	50	100

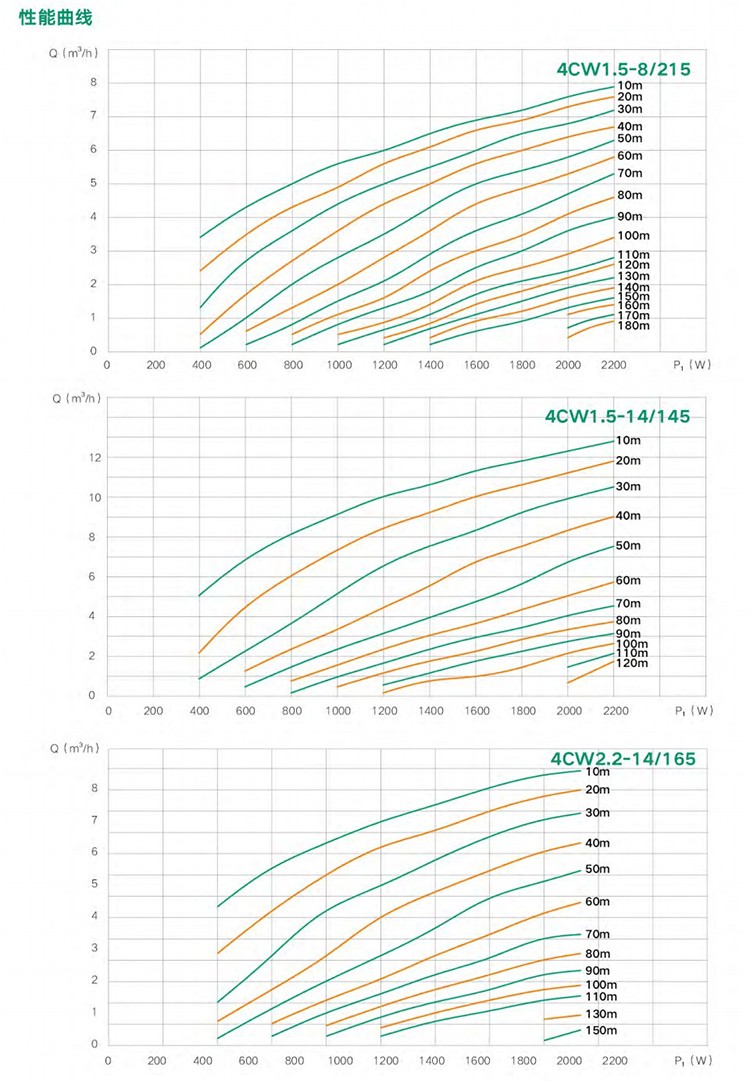

4CW1.5-8/215		1.5	2.0	8	213	38	100
4CW1.5-14/145		1.5	2.0	13.5	143	50	100
4CW2.2-14/165		2.2	3.0	13.5	165	50	100

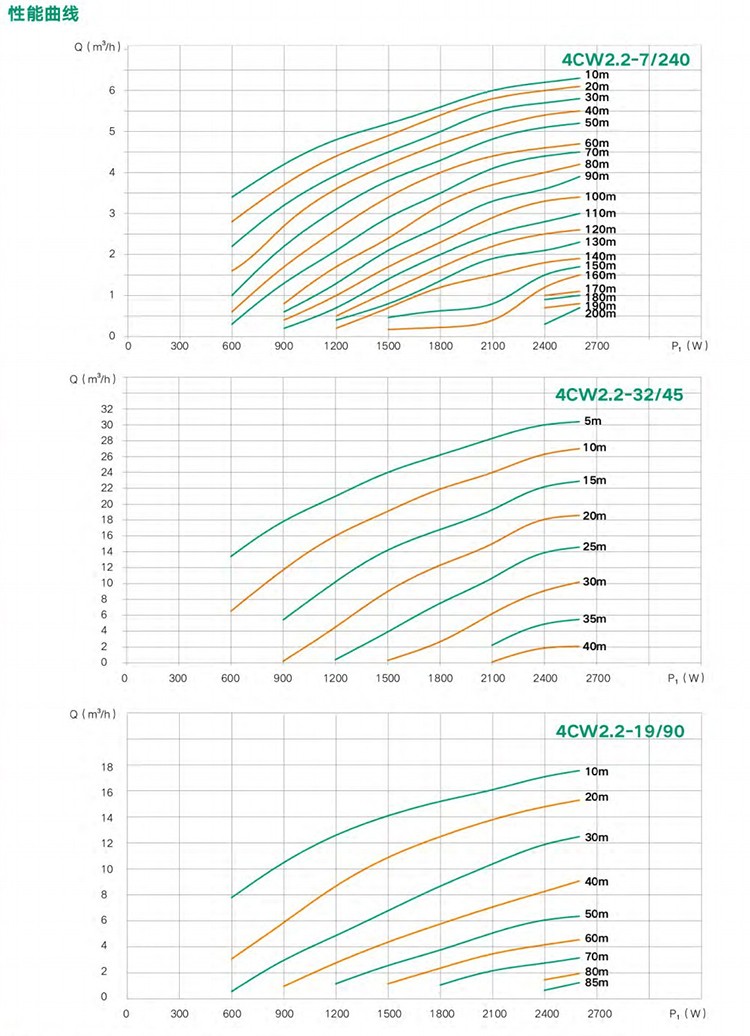

4CW2.2-19/90		2.2	3.0	18.5	90	50	100
4CW2.2-7/240		2.2	3.0	6.5	240	32	100
4CW2.2-32/45		2.2	3.0	3.2	45	63	100
