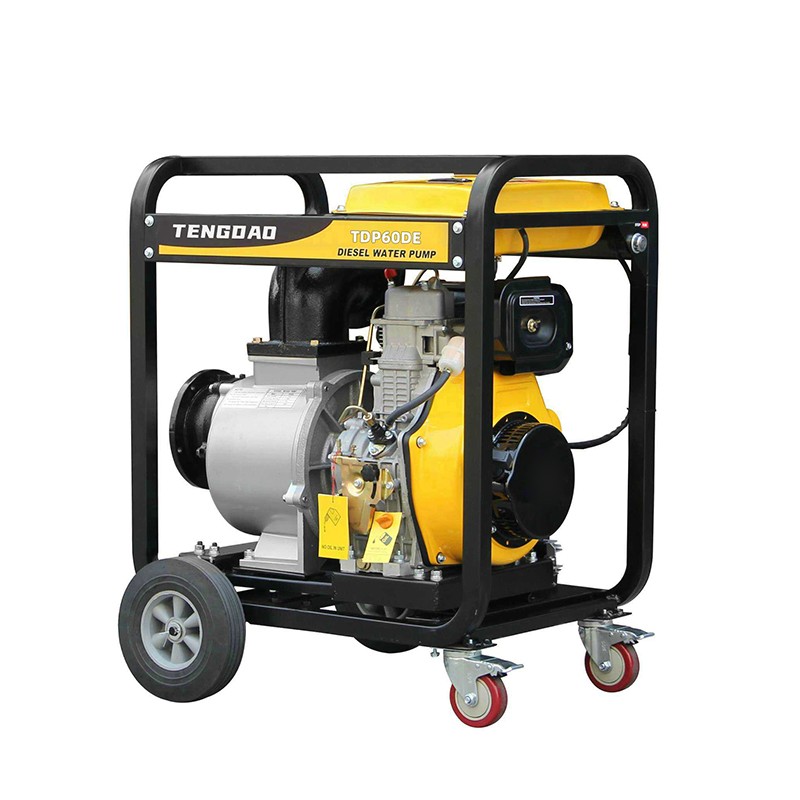

Tengdao Diesel Engine Water Pump Unit Series
The Tengdao diesel engine water pump units are lightweight, have strong water extraction capabilities, and large flow rates, making them easy to move quickly. They are widely used in various applications such as agricultural irrigation, flood relief, fish pond management, and construction sites. They are great helpers for outdoor water supply operations.
Product Features
Outstanding Power
The Tengdao air-cooled diesel engine provides a continuous and reliable power output.
Reliable and Durable
With a robust pump shell and cover structure, the water pump operates safely and reliably, ensuring durability.
High Lift and Fast Self-Priming
With strong power, a vortex impeller design, and excellent sealing, the pump significantly increases lift and shortens self-priming time.
Quick and Easy to Use
The integrated design is compact, allowing users to simply connect the inlet and outlet pipes for safe and convenient operation.
Easy Maintenance
The aluminum alloy self-priming pump body requires no maintenance; it connects easily to the power source for convenient self-service.
| Model | TDP60DE |
| Suction,discharge port diameter[mm(in)] | 150(6′), 150(6′) |
| Cont.head(m) | 15 |
| Self-priming time(s/4m) | 200 |
| Max suction head(m) | 6 |
| Cont.capacity(m³/hr) | 180 |
| Engine model | 198FA |
| Speed(rpm) | 3200 |
| Fuel consumption(g/kw.h) | 230 |
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine |
| Displacement(cc) | 633 |
| Bore*stroke(mm) | 98*84 |
| Starting system | Electric |
| Fuel tank capacity(L) | 23 |
| Oil alert | yes |
| Connector of infall,Connecto of outfall | yes |
| Filter | yes |
| Seal ring | yes |
| Hoop | yes |
| Dimension(L× W× H)(mm) | 755×530×825 |
| Net weight(kg) | 147 |
| 20FT | 56 |
