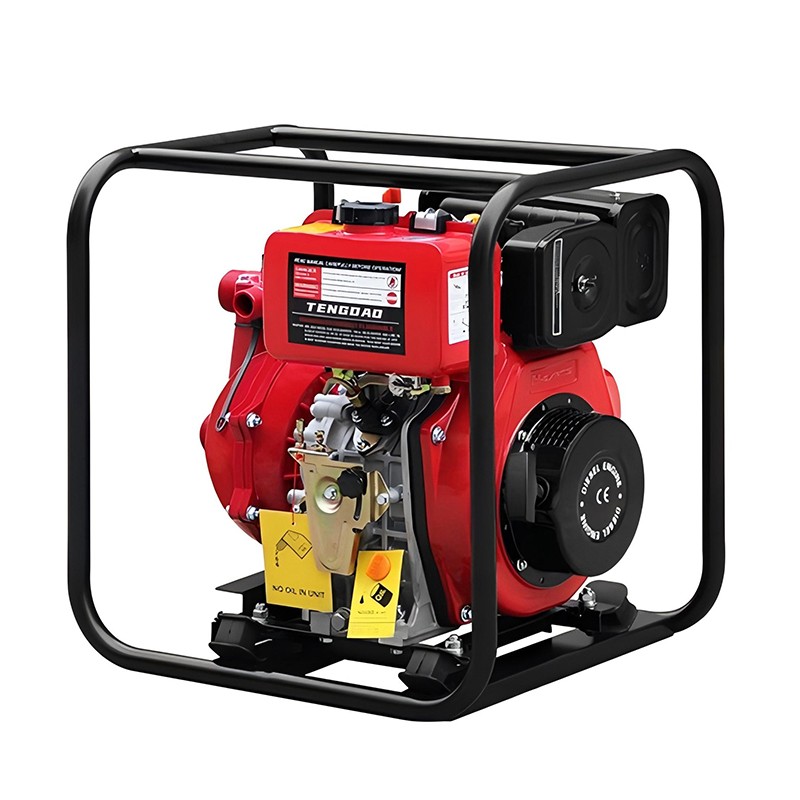

Tengdao 1.5-inch to 3-inch High-Lift Diesel Water Pump
The high-lift diesel water pump is a type of pump equipment that can transport liquids to higher locations and is widely used in various scenarios that require high-lift delivery. Below is a detailed introduction to the high-lift diesel water pump:
1、 It is suitable for firefighting rescue, forest fire prevention and disaster relief, forestry firefighting, and oil mining areas.
2、It also adopts the dual starting method (manual and electric) and is applicable in various scenarios that require high-lift delivery.
Features of the High-Lift Diesel Water Pump:
1、High Lift: Capable of delivering liquids to higher positions.
2、Versatile: Suitable for multiple scenarios including firefighting rescue, forest fire prevention, and emergency flood control.
3、Durability: Made from high-quality materials and advanced technology to ensure long-term stable operation.
| Model | TDP15DH | TDP20DH | TDP30DH |
| Suction,discharge port diameter(mm(in)) | 40(1.5”) | 50(2”) | 80（3”) |
| Cont.head(m) | 60 | 90 | 75 |
| Self-priming time (s/4m) | 30 | 30 | 30 |
| Max suction head (m) | 7 | 8 | 8 |
| Cont.capacity(m3/hr) | 18 | 35 | 47 |
| Engine model | TD178F | TD186F | TD92FD |
| Speed(rpm) | 3600 | 3600 | 3600 |
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
| Displacement(cc) | 296 | 418 | 498 |
| Bore×stroke (mm) | 78×62 | 86X72 | 92X75 |
| Starting system | Recoil or Electric | Recoil or Electric | Recoil or Electric |
| Fuel tank capacity(L) | 3.5 | 5.5 | 5.5 |
| Electric Start | optional | optional | optional |
| Dimension(L×W×H)(mm) | 560×465×565 | 580×550×605 | 645×550×630 |
| Dry weight(kg) | 42 | 69 | 92 |
| 20FT | 136 | 105 | 90 |
