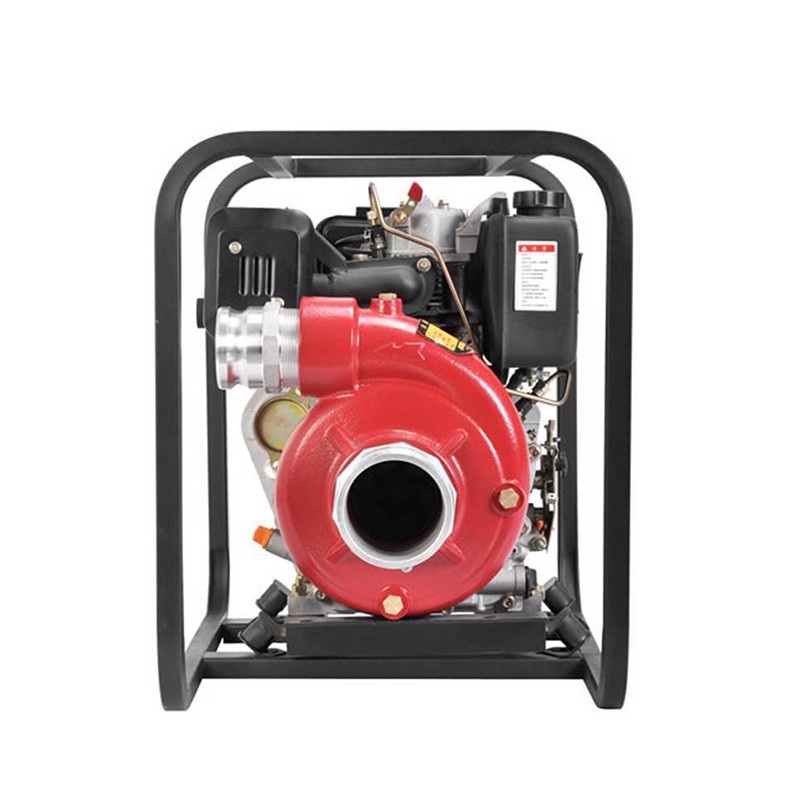

Tengdao 2-inch to 4-inch Diesel Engine Cast Iron Water Pump
一、Product Features and Advantages:
1、Material: Cast iron pump body, compact and lightweight, strong mobility, easy to use, and safe for transportation.
2、Powerful Performance: The diesel engine assembly has high crankshaft rigidity and efficient torque transmission.
3、Convenient Operation: Equipped with remote transmission instruments and meters, easy to install, use, and maintain.
4、Good Self-priming Ability: Multiple improvements in self-priming performance, addressing external factors that affect self-priming capability.
5、Cooling Design: Provides different cooling designs for high-temperature media transportation conditions.
二、Application Scenarios:
1、Urban environmental protection, construction, firefighting, chemical industry, pharmaceuticals, printing and dyeing, brewing, electricity, electroplating, papermaking, equipment cooling, etc.
2、Equipped with a swing arm nozzle, suitable for spray irrigation in farms, nurseries, orchards, and tea gardens.
3、Compatible with any model or specification of filter presses, making it an ideal matching pump.
| Model | TDP20DCI | TDP30DCI | TDP40DCI |
| Suction,discharge port diameter(mm(in)) | 50(2”) | 80(3”) | 100(4”) |
| Cont.head(m) | 26 | 25 | 31 |
| Self-priming time (s/4m) | 70 | 120 | 180 |
| Max suction head (m) | 8 | 8 | 8 |
| Cont.capacity(m3/hr) | 36 | 50 | 96 |
| Engine model | TD170F | TD178F | TD186F |
| Speed(rpm) | 3600 | 3600 | 3600 |
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
| Displacement(cc) | 211 | 296 | 406 |
| Bore×stroke (mm) | 70×55 | 78×62 | 86×70 |
| Starting system | Recoil or Electric | Recoil or Electric | Recoil or Electric |
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 |
| Electric Start | optional | optional | optional |
| Dimension(L×W×H)(mm) | 490×405×515 | 558×405×550 | 650×480×610 |
| Dry weight(kg) | 35 | 52 | 69 |
| 20FT | 180 | 140 | 99 |
