Solar deep well pump

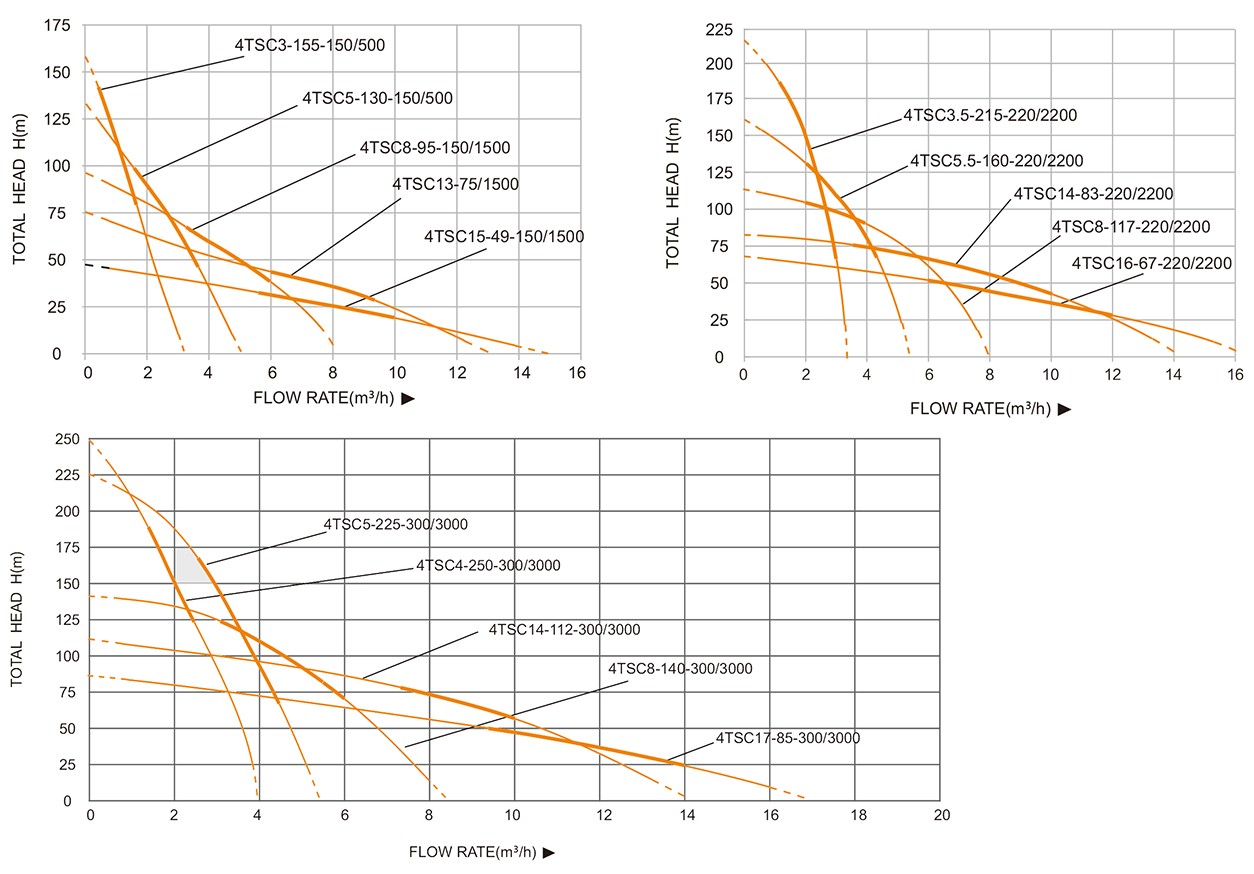

Parameter table

APPLICATION AREA
This project products are mainly used in dry region for irrigation of agriculture,It can be used for drinking water and living water.The living condition could be much improved.It also can be used for fountains.

MODEL SELECTION

1.The power of solar panel = Power of pump X (1.3~1.6).The voltage of solar panel = The voltage of pump.The controller should be matched

2.Select the batteries according to the following formulas:The use hour of Battery = The battery capacity is 100AH,the voltage is 12V,and the battery is fully charged,then the use hour is:For example,the machine power is 200w,the battery capacity is 100AH,the voltage is 12V,and the battery is fully charged,then the use hour is:100÷（200÷12）x0.6=3.6hours.

3.The battery capacity=The use hour ÷0.6x(The machine ÷ The battery voltage).For example,the machine power is 200w,the battery voltage is 12V,and the battery need to be used for 3.6hours,then the battery capacity is:3.6÷0.6x(200÷12)-100AH.
