Mobile 9KW portable diesel generator-Tengdao Machinery

Features of diesel generator:

Powerful power
Tengdao air-cooled series diesel engine provides a steady stream of reliable power.

High conversion rate
High-density all-copper motor, insulation above Class F, stable output, high conversion efficiency, economical and energy-saving.

Stable output
Intelligent inductive + capacitive adjustment AVR, stable voltage, small waveform distortion.

Digital panel
Digital display large panel, reasonable functional area division; voltage, frequency, timing, low oil pressure alarm four-in-one, reliable and durable, easy to maintain.

Easy to carry
Lightweight design, compact structure, easy to move and easy to use.

Product Detail

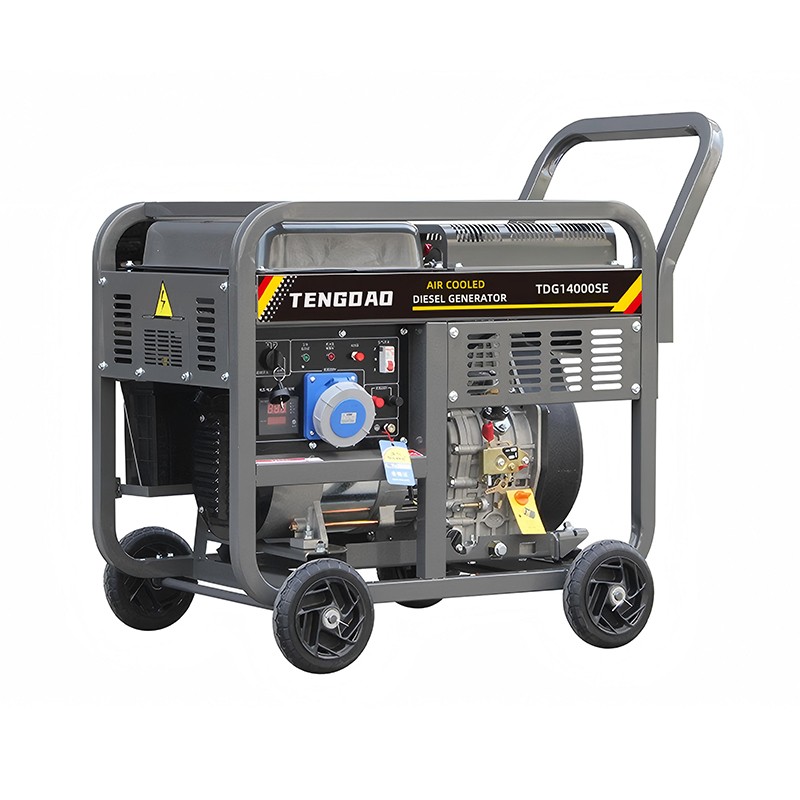

Model	TDG14000SE 9kw diesel generator		TDG14000TE 9kw diesel generator
Frequency (HZ)	50	60	50	60
Max.output (KW)	9.5	9.8	9.5	9.8
Rated output (KW)	9	9.3	9	9.3
Rated AC voltage (V)	120, 220, 230, 240, 220/380, 230/400, 240/415		120, 220, 230, 240, 220/380, 230/400, 240/415
Power factor	1		1
DC output (V)	12V/8.3A		12V/8.3A
Phase	Single phase or Three phase		Single phase or Three phase
Alternator type	Self-excited, 2-pole alternator		Self-excited, 2-pole alternator
Starting system	Electric		Electric
Noise level (Dba/7m)	72-75		72-75
Fuel tank capacity (L)	30		30
Continuous running time (hr)	12	12	12	12
Engine model	TD1102F		TD1102F
Engine type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine		Single-cylinder, vertical, 4-stroke air-cooled diesel engine
Bore× stroke(mm)	102×88		102×88
Fuel consumption rate (g/kw.h)	240		240
Fuel	0# or -10# light diesel oil		0# or -10# light diesel oil
Lubrication oil volume (L)	1.65		1.65
Combustion system	Direct Injection		Direct Injection
Packing dimention (LxWxH) (mm)	770× 540×700		970× 580×780
Gross weight (kgs)	155		225
20FT loading pcs	80		52
