Technology Highlight
●Large capacity cavity of vacuum pump
●Maintenance-free battery
●Series connection of multi-equipment
●Maintenance-free battery
●Low noise

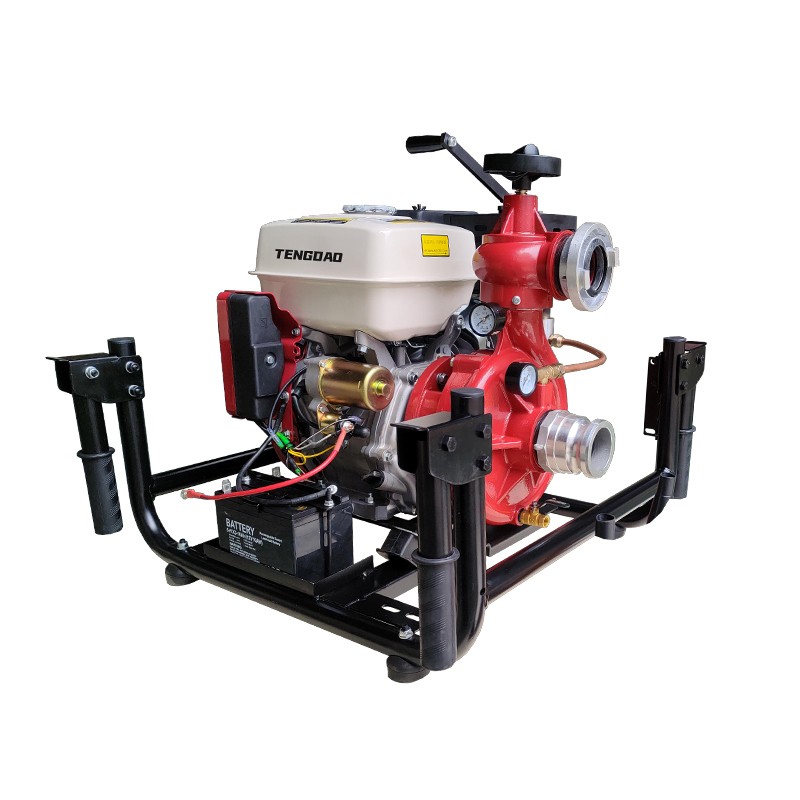

Gasoline engine fire pumpmodel: TDG5.5/12.5
Engine
439cc, Lifan
4-Stroke, air-cooled gasoline engine
Output Power
15PS（11Kw）
Water Pump Performance
500 L/min . At 0.65 Mpa
750 L/min . At 0.55 Mpa
1000 L/min . At 0.35 Mpa
Weight
56kg
Technology Parameter
| Engine | Type | 4-stroke | water pump | Pump | Single suction single-stage impeller |
| Cylinders | Single | Suction Diameter | 2.5”（65mm） | ||
| Bore*Stroke（mm） | 88×72（439cc） | Suction Thread | JIS Screw type | ||
| Max. Output | 15PS（11Kw） | Outlet Dia | 2.5”（65mm） | ||
| Authorized Output | 12PS（8.8Kw） | Outlet Thread | Srew type | ||
| Fuel Type | No.92 or above Gasoline | Outlet Quantity | 1 | ||
| Fuel Tank | 6.5L | ||||
| Fuel System | Carburetor | Outlet Valve Type | Ball Valve | ||
| Lubrication | Forced lubrication system | Priming Type | Vacuum Pump | ||
| Oil Capacity | 0.9L | Priming Time | ≤15S | ||
| Start Way | Electric or manul（Remote start is available） | Max. Suction depth | 7m | ||
| Method Of Ignition | D.C.I | Outlet Performance | 500 L/min.at 6.5 Mpa | ||
| Consumption | 3.5L/h | 750 L/min.at 5.5 Mpa | |||
| 1000 L/min.at3.5 Mpa | |||||
| Pump Lift | 75m | ||||
| Size | L×W×H（mm） | 560×565×530 | Dry Weight | Net Weight | 56kg |
