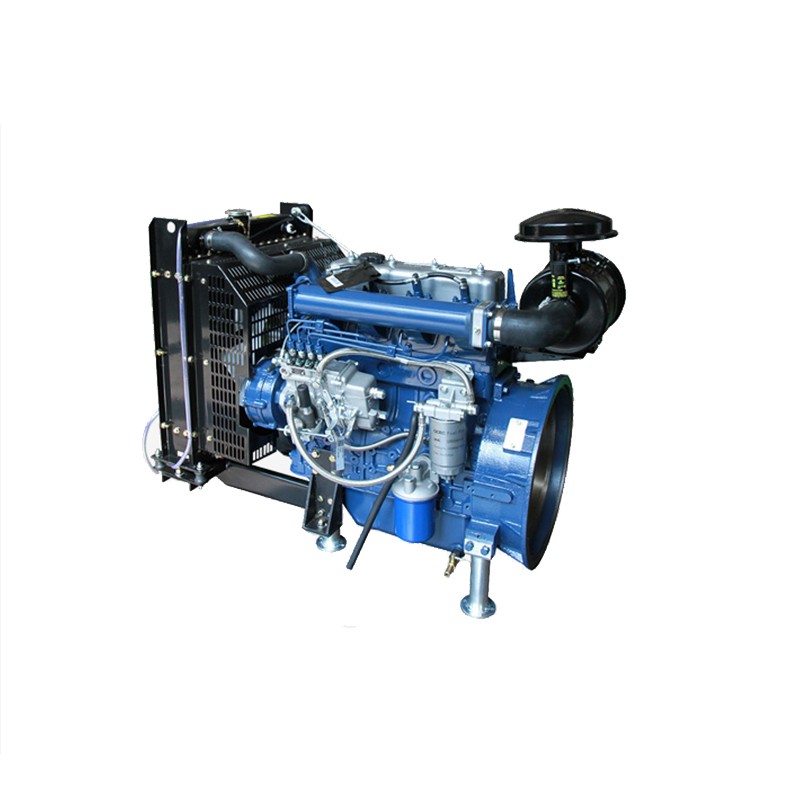

Generator Sets Diesel Engine
Generator sets diesel engines are for the generator sets
the power covers from 10KW ~182KW, the displacement is from 1.357L~7.98L.
The whole machine has the characteristics of stable speed, low noise, low fuel consumption and high reliability.
| Engine platform | Model | Bore×Stroke | Displacement | Fuel system | Intake way | Standby | Speed | Output frequency | Flywhee | Flywheel |
| r/min | （Hz） | lcover type | type | |||||||
| A | 380D | 80×90 | 1.357 | (Mechanical or | Natural intake | 10 | 1500 | 50 | SAE4# | SAE7.5″ |
| Electronical) | 12 | 1800 | 60 | |||||||
| 385D | 85×90 | 1.532 | 11 | 1500 | 50 | |||||
| 13.2 | 1800 | 60 | ||||||||
| 480D | 80×90 | 1.809 | 14 | 1500 | 50 | |||||
| 17 | 1800 | 60 | ||||||||
| B | N485D | 85×95 | 2.156 | 17 | 1500 | 50 | ||||
| 20 | 1800 | 60 | ||||||||
| N490D | 90×100 | 2.544 | 23 | 1500 | 50 | |||||
| 27 | 1800 | 60 | ||||||||
| 4B5-52C31 | 95×100 | 2.83 | common rail | Turbocharged | 38 | 1500 | 50 | SAE3# | SAE11.5″ | |
| 4B5-62C31 | 45.5 | 1800 | 60 | |||||||
| C | 490D | 90×105 | 2.67 | (Mechanical or | Natural intake | 24 | 1500 | 50 | SAE4# OR SAE3# | SAE7.5″or SAE10 |
| Electronical) | 28 | 1800 | 60 | “or SAE11.5” | ||||||
| 498D | 98×105 | 3.17 | 28 | 1500 | 50 | |||||
| 33 | 1800 | 60 | ||||||||
| 4C2-40C31 | 90×105 | 2.67 | common rail | 30 | 1800 | 60 | ||||
| 4C2-35C31 | 25.8 | 1500 | 50 | |||||||
| D | 4102D | 102×118 | 3.857 | (Mechanical or | 33 | 1500 | 50 | SAE3# | SAE10″ or SAE11.5″ | |
| Electronical) | 39.6 | 1800 | 60 | |||||||
| 4105D | 105×118 | 4.087 | 38 | 1500 | 50 | |||||
| 45 | 1800 | 60 | ||||||||
| M | 4115D | 115×135 | 5.61 | 60 | 1500 | 50 | SAE11.5″ | |||
| 66 | 1800 | 60 | ||||||||
| 4112D | 112×135 | 5.32 | 55 | 1500 | 50 | |||||
| 60 | 1800 | 60 | ||||||||
| 4112ZD | Turbocharged | 80 | 1500 | 50 | ||||||
| 88 | 1800 | 60 | ||||||||
| 4112ZLD | Turbocharged and | 95 | 1500 | 50 | ||||||
| Inter-cooled | 105 | 1800 | 60 | |||||||
| 6112ZLD | 7.98 | Electronical | 165 | 1500 | 50 | SAE2# | ||||
| 182 | 1800 | 60 | ||||||||
| 6112ZD | (Mechanical or | Turbocharged | 125 | 1500 | 50 | |||||
| Electronical) | 138 | 1800 | 60 | |||||||
| J | 4J1-110C31 | 105×124 | 4.294 | common rail | Turbocharged | 81 | 1500 | 50 | SAE3# | |
| 4J1-130C31 | 95 | 1800 | 60 |
