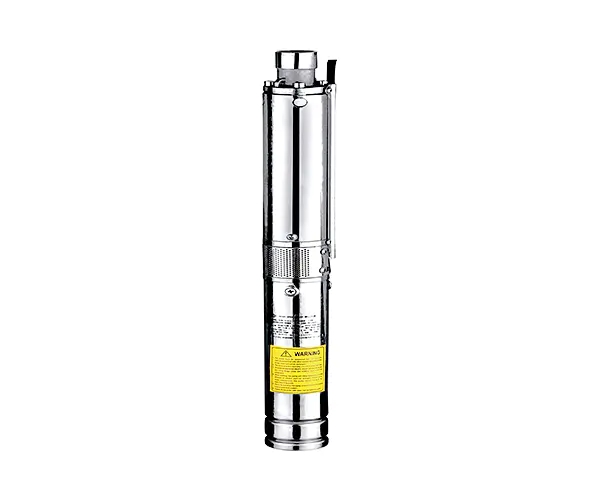

High-Speed Deep Well Pump Series: A Revolutionary Leap in Pump Technology
The advent of high-speed, efficient deep well pumps, powered by advanced high-speed, brushless direct current (DC) permanent magnet synchronous motors, marks a significant milestone in pumping technology. This innovative product stands out among conventional deep well pumps due to its capability to operate at high speeds while being remarkably compact and lightweight—about one-third to one-fourth the size and weight of conventional pumps with the same specifications for power, head, and flow. Its energy-saving and high-efficiency features make it a quintessential example of modern electromechanical integration, promoting it as the next-generation submersible pump integral to the evolution of pumping systems.
One of the most compelling characteristics of this new generation of deep well pumps is the sophisticated controller that operates in tandem with the pump. This controller is capable of a variety of operational modes, including variable frequency speed adjustment and constant speed operation. Consequently, it can provide constant pressure and flow water supply, implement scheduled automatic start and stop functions, and allows for remote network operations—creating an intelligent operational model that caters to today’s automation needs. This technological adaptability ensures a broad range of applications, accommodating both 50 Hz and 60 Hz power systems and allowing for wide voltage usage with stable output, effectively maintaining constant head and flow rates.
Parameter table：
| Model | flow | head | Power | Voltage | speed | height | weight | Outlet | Diameter | Package size |
| T/h | M | KW | V | r/min | mm | KG | mm | mm | mm | |
| 2TDW1.5-20-0.25 | 1.5/2.6 | 20/33 | 0.38 | 220 | 7200 | 495 | 3.6 | 1 | 50 | 95*95*500 |
| 2TDW1.5-30-0.37 | 1.5/2.6 | 30/50 | 0.55 | 220 | 7200 | 540 | 3.7 | 1 | 50 | 95*95*500 |
| 2TDW1.5-45-0.55 | 1.5/2.6 | 45/72 | 0.73 | 220 | 7200 | 595 | 3.8 | 1 | 50 | 95*95*500 |
| 2TDW1.5-60-0.75 | 1.5/2.6 | 60/98 | 1.1 | 220 | 7200 | 650 | 4.2 | 1 | 50 | 95*95*600 |
| 2TDW1.5-90-1.1 | 1.5/2.6 | 60/83 | 1.5 | 220 | 7200 | 690 | 4.5 | 1 | 50 | 95*95*700 |
| 2TDW2-20-0.37 | 2/3 | 20/50 | 0.55 | 220 | 7200 | 540 | 3.7 | 1 | 50 | 95*95*500 |
| 2TDW2-30-0.55 | 2/3 | 30/72 | 0.73 | 220 | 7200 | 595 | 3.8 | 1 | 50 | 95*95*500 |
| 2TDW2-45-0.75 | 2/3 | 45/98 | 1.1 | 220 | 7200 | 650 | 4.2 | 1 | 50 | 95*95*600 |
| 2TDW2-60-1.1 | 2/3 | 60/130 | 1.5 | 220 | 7200 | 690 | 3.6 | 1 | 50 | 95*95*600 |
The use of high-efficiency motors in these pumps is a game-changer, with peak motor efficiencies reaching an impressive 92%. Furthermore, this pump is designed with a single-phase power factor approaching 0.99. When combined with the controller’s minimal energy loss, the overall efficiency of these pumps significantly surpasses that of traditional asynchronous motor-driven pumps. Such advancements in efficiency not only reduce operational costs but also represent a substantial step towards sustainable industrial and agricultural operations.
A noteworthy feature of these high-speed deep well pumps is their compatibility with various power inputs, including both AC and DC sources. This versatility allows them to function seamlessly with solar energy systems, creating a solar-powered deep well pumping solution. The latest iterations of solar pumps feature automatic frequency modulation and the ability to switch automatically between AC and solar energy; their solar utilization efficiency can reach as high as 100%. This technology surpasses traditional maximum power point tracking (MPPT) solar charging methodologies, positioning this new solar pump technology at the forefront of the industry. Power outputs range from a few hundred watts to several tens of kilowatts, delivering efficiency rates that surpass other solar pump solutions by more than 20%.
These high-speed deep well pumps are not confined to a single application but are incredibly versatile, suitable for water supply and drainage, fountains, solar energy applications, and other submersible pump uses. Their widespread application across various industries—such as agronomy, industrial usage, petrochemicals, and water treatment—underline their importance in the machinery landscape. The pumps exhibit unmatched advantages in high power and high head scenarios, signaling a pivotal shift toward more efficient, reliable, and intelligent pumping solutions.
As we look towards the future of submersible pump technology, the developments embodied in the high-speed deep well pump series signify more than just a product evolution; they symbolize an ideological shift toward intelligent, sustainable, and energy-efficient solutions in electrification and water management. The integration of advanced technologies, high-efficiency components, and versatility in power sources speaks to a future where pumping solutions can adapt to the ever-changing demands of society and the environment.
In conclusion, the high-speed efficient deep well pump series marks a remarkable advancement in pump technology. It combines cutting-edge engineering, significant efficiency gains, and versatile applications, setting a new standard for the entire industry. This represents not only a technological achievement but also a commitment to sustainable practices that will shape the forthcoming landscape of industrial and agricultural water management for years to come. With these innovations, we are witnessing a paradigm shift that hints at immense possibilities for future advancements in both electromechanical integration and environmental sustainability.
